Myrinet Configurations

The Easy Installation Tool automatically creates a Myrinet configuration file for PM. Please connect the Myrinet network using one of the following allowed connections: If you want to build a cluster of more than 128 compute hosts, please contact us using SCore Users ML.

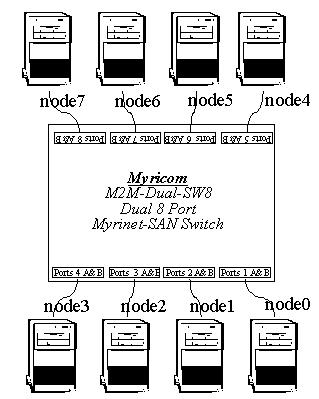

SW8

2 compute hosts to 8 compute hosts

Using one Dual 8-port Myrinet-SAN switch, M2M-Dual-SW8:

SW16

9 compute hosts to 16 compute hosts

Using one 16-port Myrinet-SAN switch, M2M-SW16:

OCT-SW8:16

9 compute hosts to 16 compute hosts

Using Octal 8-port Myrinet-SAN switches, M2M-OCT8:

2xOCT-SW8:32

17 compute hosts to 32 compute hosts

Using two Octal 8-port Myrinet-SAN switches, M2M-OCT8:

4xOCT-SW8:64

33 compute hosts to 64 compute hosts

Using four Octal 8-port Myrinet-SAN switches, M2M-OCT8:

8xOCT-SW8:128

65 compute hosts to 128 compute hosts

Using eight Octal 8-port Myrinet-SAN switches, M2M-OCT8:
